air-to-water NEW GEN R290

BoxAir Inverter P heat pump

Extremely quiet and economical monobloc air-to-water heat pump with R290 refrigerant. Ideal for family houses with thermal loss of up to 18 kW.

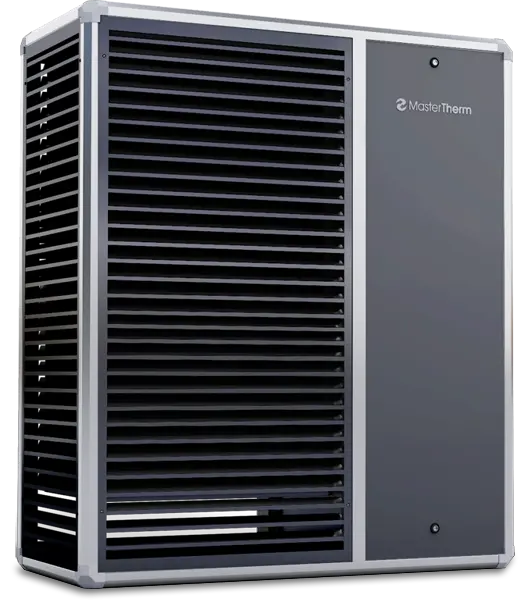

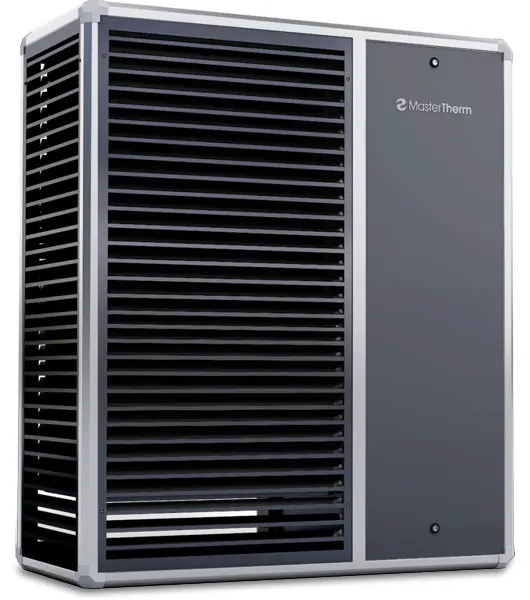

BoxAir Inverter P

All-in-one unit Easy installation. No hydro- or electrobox needed, everything integrated in the outside casing. Including heating side circulation pump, frequency converter etc.

Unique all-aluminium cabinet Aluminium construction of panels with a long-lasting resistance to weathering and corrosion. Default colour setting: anthracite RAL 7016.

Total safety Thanks to the low volume of the R290 refrigerant in the system, an integrated refrigerant leak detector, and automatic shutdown of the unit.

BoxAir Inverter P

BoxAir Inverter P

BoxAir Inverter P

BoxAir Inverter P

BoxAir Inverter P

Energy efficienty

Energy efficienty

R290 refrigrant

R290 refrigrant

Heating water temperature up to 75 °C

Heating water temperature up to 75 °C

Output from 1 to 25 kW

Output from 1 to 25 kW

Online control & 27/7 remote monitoring

Online control & 27/7 remote monitoring

Main features

All-in-one unit: Compact monobloc outdoor thermal air-to-water pump Easy installation without intervention to the cooling (compressor) circuit and into the existing heating system Without indoor unit, all accessories including control and circulation pump integrated into the external unit Full serviceability of all components

24/7 remote service monitoring and diagnostics Absolute reliability thanks to our 20+ years of commercial & industrial experience Smart home integration: online 24/7 monitoring, modbus/BMS, integrated electricity meter, communication with PV inverter and batteries, connection to Smart Grids, etc. Active cooling mode (optional equipment)

Avaliable in 3 phases / 1 phase variant Built-in heating side circulation pump Minimized noise due to ultra-quiet fans with smooth speed control

Max heating water temperature 75 °C Anti-legionella function from compressor only Outdoor temperature range from -20 °C to +40 °C Integrated bivalent power supply as standard

Technical details

Model

Design

Performance at A7W35

P-Design

Seasonal energy efficiency of heating at a 35 °C low temperature operation

Seasonal energy efficiency of heating at a 55 °C medium temperature operation

Maximum heating water temperature

Order number (according to heating circuit control)
+ pricing

kW

kW

SCOP

Class

SCOP

Class

°C

Regulation STANDARD (μPC)

EUR

Regulation PLUS (pCO5)

EUR

BoxAir 22 Inverter P

compact

2–7

4

4,24

A++

3,35

A++

75

3BA22IP1-01

8190

3BA22IP1-11

8690

BoxAir 26 Inverter P

compact

4–14

7

4,9

A+++

3,66

A++

75

3BA26IP1-01

8390

3BA26IP1-11

8890

BoxAir 37 Inverter P

compact

6–20

11

4,37

A++

3,5

A++

75

3BA37IP1-01

10590

3BA37IP1-11

10990

BoxAir 45 Inverter P

compact

8–25

14

TBA

TBA

TBA

TBA

75

TBA

TBA

TBA

TBA

Regulation STANDARD (μPC): Designed for single-circuit heating systems. No auxilliary heating circuit, 1-zone space temperature, 1 heating circuit.

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

Master Therm software

Master Therm software

Unique Master Therm software for heat pump control

Custom application for controlling the cooling circuit and peripherals Equithermal MaR (measurement and regulation) Advanced temperature feedback control in the building based on internal room temperature sensors Control via touchscreen terminal or online application Includes remote service monitoring and diagnostics Control of up to 6 heating circuits including the possibility of connecting a swimming pool or solar panel

Download software AppStore GooglePlay MasterTherm software

Optional equipment selection

7-year warranty on the complete pump Without any exceptions. Only in combination with Master Therm Online app.

Master Therm Online app Advanced online control and romote service acces.

Additional pGDx touch screens (1 as standard) Parametrization, temperature compensation, humidity sensor, ethernet or wifi internet connection. Mounting possible on/in the wall (plasterboard).

Reverse cooling module Reverse operation of the pump allowing for long term cooling of the building or industry technology.

Energy meter 1x100A Display, MID, all single phase units

Energy meter 3x65A Display, MID, 1 phase, max.unit circuit breaker 25A

Extended control module Up to 6 heating circuits + SHW, for regulation PLUS (pCO5) only.

Evaporator with corrosion resistant coating Perfect for applications built near sea etc.

Any colour of the unit on request Anthracite as standard, any RAL colour possiible as option.

Download

Catalogues

Download Pricelist_R290_EN_01.pdf Size: 0,48 MB Download R290 air source heat pumps.pdf Size: 2,47 MB Download R290 full catalogue.pdf Size: 9,03 MB Download special_vzduch-voda_R290_EN_01-online.pdf Size: 2,47 MB

How it works

Air-to-water heat pumps are based on the principle of extracting heat from the ambient air, whose temperature can be many degrees Celsius below zero. The heat extracted from the environment is transferred by the heat pump to the heating water that heats the building, or is used for the preparation of hot water. The system achieves a seasonal efficiency of up to 4.5 times higher than that of a conventional electric boiler and thus delivers significant energy savings.
