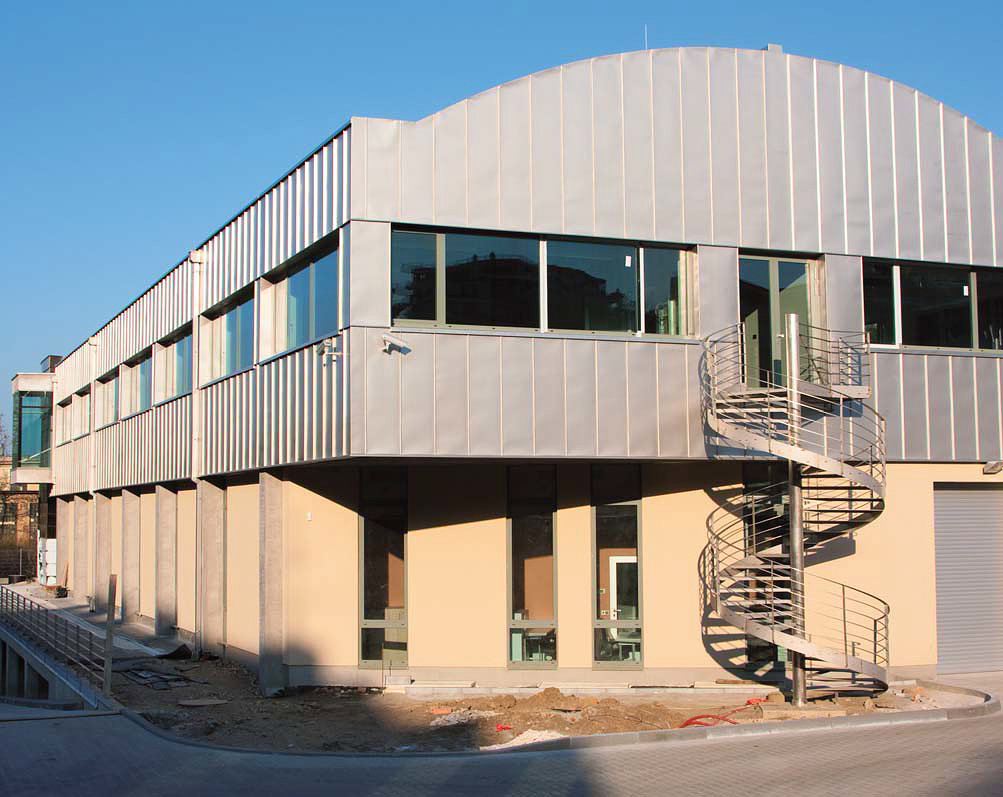

Prague, CZ: Heat recovery at HVM Plasma Ltd.

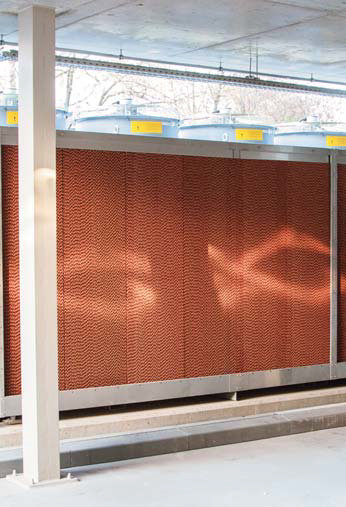

A sophisticated cooling system of the production process with a bespoke design water-to-water heat pump system with increased efficiency as the system is combined with outdoor dry-type cooler for possibility of free cooling.

Very high efficiency system due to re-use of process heat for heating the entire building and hot water heating. Furthermore the system can produce direct cooling water for air conditioning for the entire building. Cooling is accurately defined by the temperature gradient which helps to optimize the production process (hi-tech thin-film technique).

This project was awarded the title of Environmental Construction of the Year.

12x AquaMaster

Installed heating power: 1 270 kW
Type of heat pumps: water to water
Annual energy savings: 940 MWh
Annual financial savings: 2 400 000 Kč / 96 000 EUR
Return on investment: 4 years
