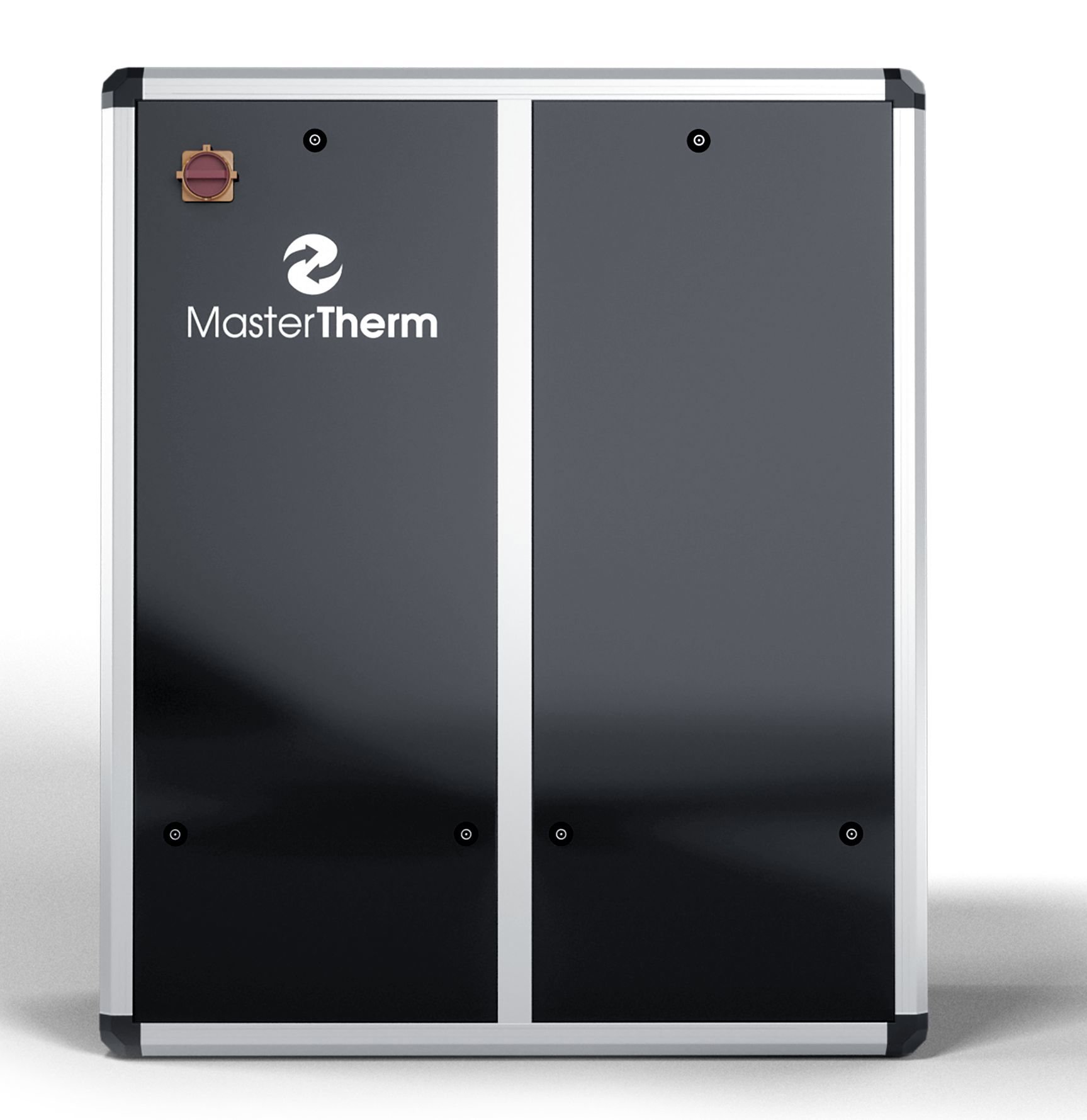

ground-to-water NEW GEN R290

AquaMaster 45/90 Inverter P
heat pump

World's unique range of heat pumps with R290. Power from 35 to 70 kW. Designed for heating and cooling of large-scale facilities.

Our most powerful twin-compressor heat pump Output up to 70 kW with a two-compressor solution, or 35 kW with a single-compressor unit

Ground-to-water or Water-to-water Available also as water-to-water heat pump. Ready for heat recovery applications.

Ready for cascades Total cascade power of more than 1100 kW

Energy efficienty

R290 refrigerant

Heating water temperature up to 75°C

Output up to 70 kW

Online control & 24/7 remote monitoring

Send a request

Main features

Compact ground-to-water heat pump for residential, commercial and industrial applications with R290 refrigerant Ground-to-water heat pump (or water-to-water on request) Power up to 70 kW (B0W35) Total cascade power of 1100 kW

24/7 remote service monitoring and diagnostics Smart home integration: modbus/BMS, integrated electricity meter, communication with PV inverter and batteries, connection to Smart Grids, etc. Excellent also for industrial cooling and waste heat recovery Passive cooling module (optional equipment)

Maximum heating water temperature: 75 °C Anti-legionella function from compressor only

Technical details

Model	Performance at B0W35	Thermal loss of the building Qz	Seasonal energy efficiency of heating at a 35 °C low temperature operation		Seasonal energy efficiency of heating at a 55 °C medium temperature operation		Order number (according to heating circuit control)
kW	kW	kW	SCOP	Class	SCOP	Class	PLUS
AquaMaster 45 Inverter P	5–35	up to 35	4,85	A+++	3,79	A++	AQ45IP-311U
AquaMaster 90 Inverter P	10–70	up to 70	TBA	TBA	TBA	TBA	AQ90IP-311U

Regulation PLUS (pCO5): Designed for multiple-circuit heating systems. 2 independent auxilliary heating circuits including mixing. 2-zone space temperature, up to 6 heating circuits.

Master Therm software

Unique Master Therm software for heat pump control

Custom application for controlling the cooling circuit and peripherals Equithermal MaR (measurement and regulation) Advanced temperature feedback control in the building based on internal room temperature sensors Control via touchscreen terminal or online application Includes remote service monitoring and diagnostics Control of up to 6 heating circuits including the possibility of connecting a swimming pool or solar panel

Download software AppStore GooglePlay MasterTherm software

Optional equipment selection

Master Therm Online App Advanced online control and remote service acces.

Additional pGDx touch screens (1 as standard) Parametrization, temperature compensation, humidity sensor, ethernet or wifi internet connection. Mounting possible on/in the wall (plasterboard) or in the heat pump‘s case.

Passive cooling module Exclusive for ground-to-water heat pumps. Direct heat extraction from the interior of the ground collector or borehole. Extremely economical summer cooling of the building without need for compressor work.

Water-to-water design Adaptation for use on bottom or surface water. Evaporator more resistant to sediment (coax) and different electrical equipment.

Expansion module Increases the number of regulated independent heating circuits up to 6 (from the basic 2).

Terminal pAD Temperature compensation for independent heating circuit.

Integrated electricity meter Built-in 1- or 3-phase electric meter for local measurement of electricity consumption.

Desuperheater for high efficiency hot water heating Integrated device that uses a separate hydraulic circuit to remove the heat of superheated steam at the compressor outlet and increase the efficiency of hot water preparation (heating). When the compressor is in operation (heating and cooling mode), part of its thermal energy is permanently transferred to the hot water tank.

RAL colour Individual colour for pump panels.

Download

All AquaMaster 45/90 Inverter P 45IP AquaMaster 45/90 Inverter P 90IP

Catalogues

Download AQ45IP ground source 35 kW - leaflet.pdf Size: 0,27 MB Download AQ90IP ground source 70 kW - leaflet.pdf Size: 0,34 MB

SCOP sheets

Download aq45ip_032025_ecdata.pdf Size: 0,06 MB

How it works

Ground-to-water heat pumps extract energy from the ground by means of a vertical or horizontal collector. Antifreeze circulates through the collector and removes ground heat. Thanks to the constant temperature of the ground, the heat pump has a stable source of energy throughout the year. The heat extracted from the ground is then transferred to the building. The system achieves a seasonal efficiency up to 5.5 times higher thanthat of a conventional electric boiler.
